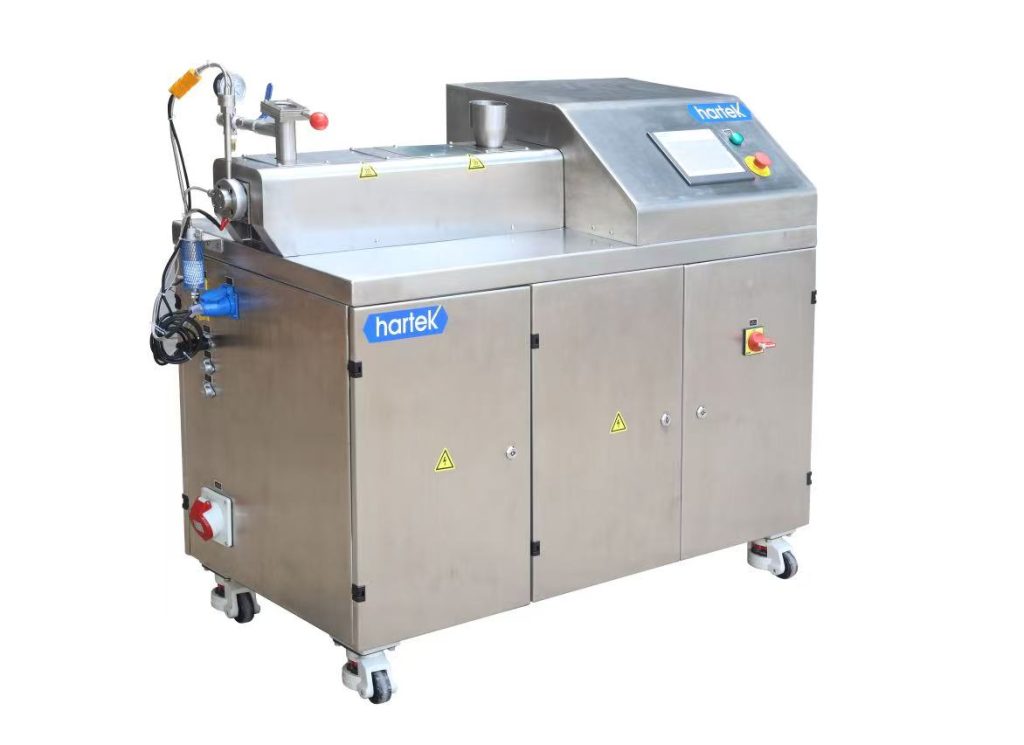

Lab Hot Melt Extruder
Lab twin screw extruder is maily for mixing and compounding in polymer processing and has expanded into other applications for new material development. The extruder offers a high level of process flexibility, more control of process parameters, and can produce a wider range of products. Being a continuous mixing process where a base matrix and multiple additives are transformed into a new compound, extrusion has benefits for multiple products beyond traditional polymer processing such as producing bio-based packaging materials;foods,flavors etc.
Fuctions & Applications
- Closely inter meshing screw profile with screws.Very easy to clean.
- Modular building-block system for screw elements.
- Barrel in“Clamp-shell”design,Each barrel one temperature zone for optimal processing
- User-friendly PLC control panel.
Specification
Model | HTGD-12 | HIGD-16 | HIGD-20 |
Screw Diameter(mn) | 11.8 | 15.7 | 21.7 |
L/D Ratio | 40 | 40 | 40 |
Motor Power(ky) | 1 | 2 | 5.5 |
Max.Speed | 60-600 | 60-600 | 60-600 |
Max.Temp.( ℃) | 350 | 350 | 350 |
Temp.control accuracy( ℃) | 土1 | ±1 | ±1 |
Pressure measuring range(MPa) | 0~35 | 0~35 | 0~35 |
Output(kg/h) | 0.1~1 | 0.1~5 | 0.5 ~20 |
Weight(kg) | 65 | 330 | 720 |
Dimension(mm) | 980*500*500 | 1380x936x1318 | 2265x936x1665 |
