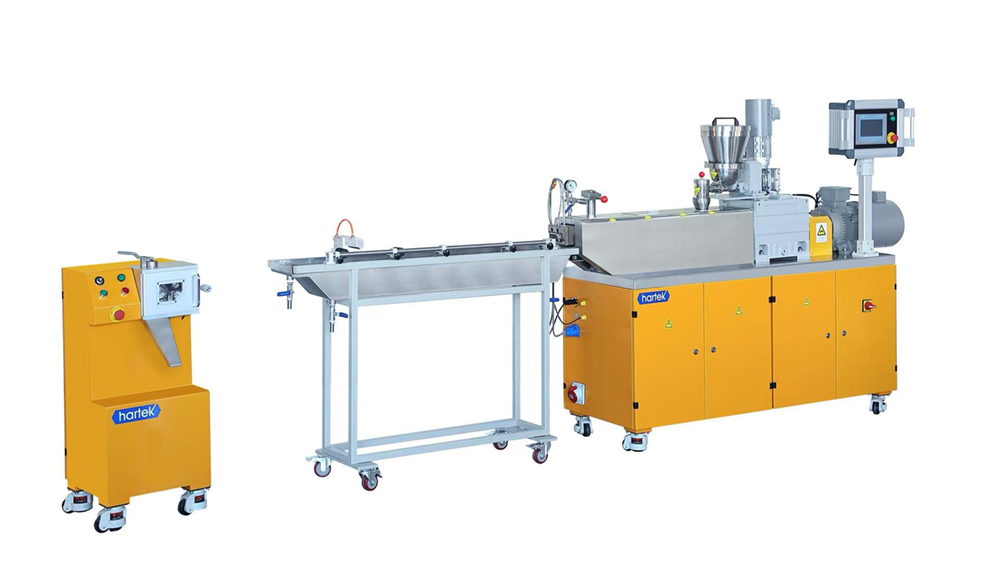

Twin Screw Extrusion Line
A lab twin screw extrusion line is a small-scale, versatile machine used in research and development for processing small batches of materials like polymers. Key features include reduced material consumption, precise control over processing parameters, and functions for mixing, reaction, and self-cleaning, making it ideal for developing new formulations, testing additives, and creating small sample quantities for testing in various industries like plastics, chemicals, and pharmaceuticals.
Fuctions & Applications
Performance of Lab Twin Screw Extrusion:
* Split opening barrel and screw structure of the building block make it easy and quick to adjust the process.
* Quick-opening head and mesh changer, fast material exchange and quick change.
* SIEMENS touching screen PLC control system,highly intelligent, easy to operate.
Application :
* Mixing, kneading and pelletizing of general plastics, engineering plastics, elastomer, etc.
* Material plasticization, conveying and reactive extrusion
* High effective compounding of polymer alloy
* Modification of filled polymer
Specification
| Model | HTGD-16 | HTGD-20 | HTGD-35 |
| ScrewDiameter(mm) | 15.7 | 21.7 | 34.5 |
| L/D Ratio | 40 | 40 | 40 |
| (kW)Motor Power | 2 | 5.5 | 18.5 |
| Speedax.(rpm ) | 60~600 | 60 600 | 60~600 |
| (℃)Hax.Tenp. | 350 | 350 | 350 |
| Temp. Control Accuracy(℃) | 士1 | 士 1 | 去1 |
| Pressure Measuring Range(MPa) | 0~35 | 0~35 | 0~35 |
| Output(kg/h) | 0.1~5 | 0.5~20 | 1 80 |
| Weight(kg) | 268 | 719 | 980 |
| Dinension(mm) | 1382x690x1230 | 2375x690x1660 | 3375x690x1660 |
