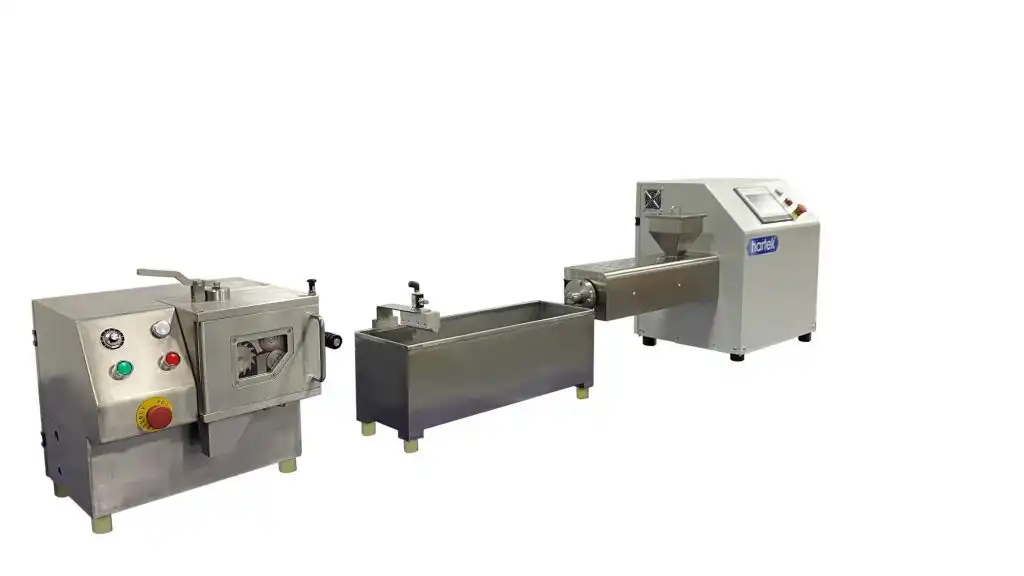

High-Quality Laboratory PP/PE Granulation Line

Main performance and features

1. High Precision: Utilizes internationally renowned brand melt pressure and temperature sensors, ensuring high-precision test data.
2. Good Plasticization Stability: The extruder employs an internationally brand motor drive, exhibiting good plasticization stability and guaranteeing material consistency during extrusion.
3. Adjustable Extrusion Speed ​​and Temperature Control: Extrusion speed and temperature can be adjusted in real-time according to material and production requirements.
4. User Formula Storage: Multiple formulas can be stored for convenient production and debugging.
5. Operational Safety: Emergency stop devices and various safety protections ensure operator safety.
6. Easy Operation: A computer-based measurement and control system and a user-friendly interface make operation simple and convenient; the intuitive interface design makes operation more intuitive and easy to understand.
7. Customizable: Customization is available to meet different material and process requirements, satisfying individual user needs.

Application of Laboratory PP/PE Granulation Line

• New product development and formula optimization
• Material screening and development
• Teaching experiments in universities and research institutions
• Product testing

Technical parameters of Laboratory PP/PE Granulation Line

Item	parameters
Applicable materials	PP、PE, ect
screw diameter	19mm
Screw length-to-diameter ratio	25:1
Power	1.5kw
capacity	0.1~2kg/h
Maximum operating temperature	350C
Voltage	220V，50Hz
Total Power	About 5kW
Control method	PLC
Dimensions	2330mm*465mm*570mm
