The Lab Precise Hydraulic Platen Press is a high-performance research and production tool designed for rubber vulcanization, thermosetting material processing, and composite thermoforming. With its precision hydraulic system, PID-controlled heating, and automated pressure management, it enables reproducible sample preparation for R&D, quality control, and small-batch production. Ideal for laboratories and pilot plants, it supports material development, process optimization, and educational training.

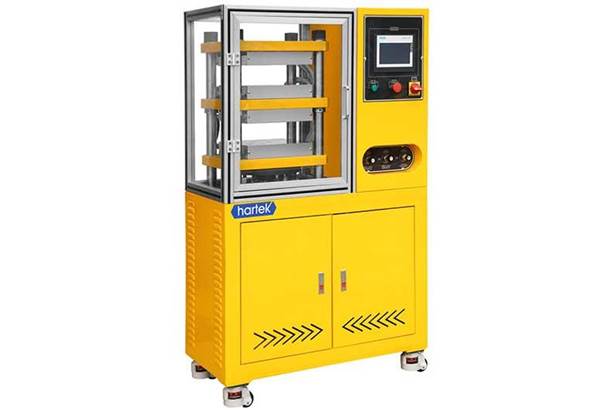

Lab Precise Hydraulic Platen Press
Applications of Precise Hydraulic Platen Press
1. Rubber & Elastomer Processing
– Vulcanization** of natural rubber (NR), SBR, NBR, EPDM, and silicone
– Curing studies** for tire treads, seals, gaskets, and industrial rubber products
– Rubber formula optimization** (filler effects, cross-linking efficiency)
2. Thermoset & Composite Manufacturing
– Compression molding** of phenolic, epoxy, and BMC materials
– Prepreg curing** for lightweight composites (carbon fiber, fiberglass)
– Thermoforming** of thermoplastic sheets (PP, PET, ABS)
3. Research & Development
– Vulcanization kinetics analysis (T90, scorch time)
– Process parameter optimization (pressure, temperature, dwell time)
– Prototyping** of O-rings, gaskets, and custom rubber/plastic parts
Main Features & Advantages
1. High-Precision Hydraulic System
– Automatic pressure compensation** ensures consistent molding force (±1% accuracy).
– Programmable pressure profiles for multi-stage curing processes.
– Overload protection** with hydraulic relief valve for safe operation.
2. Precision Temperature Control
– PID-regulated electric heating(up to 300°C with ±2°C uniformity.
– Fast heat-up (<15 min to 200°C) with dual-zone heating for platen consistency.
– Digital temperature display with real-time monitoring and alarms.
3. Robust Mechanical Design
– High-wear-resistant guide posts for stable, wobble-free platen movement.
– Hardened steel platens (mirror-polished option available) for smooth demolding.
– Adjustable open height (0-150mm) for thick molds or multi-layer samples.
4. Smart Automation
– Programmable timer for auto pressure release after curing.
– One-touch operation with manual/auto mode switching.
– Safety interlock** to prevent operation when open.
5. User-Friendly Design
– Compact footprint for lab installations.
– Low energy consumption (2.2kW motor).
– Easy mold mounting with T-slots or bolt-fastening options.
Parameter Specification of Lab Precise Hydraulic Platen Press:
| Max. Pressure | 20T / 30T / 50T (customizable) |
| Platen Size | 300×300mm (standard) |
| Max. Temperature | 300°C |
| Temp. Control Accuracy | ±2°C |
| Platen Open Distance | 0-150mm (adjustable) |
| Working Layer | 2 (multi-layer optional) |
| Heating Power | 3.5kW (per platen) |
| Motor Power | 2.2kW |
| Voltage | 380V, 3-phase (220V optional) |
| Cooling Method | Air-cooled (water-cooled upgrade available) |
