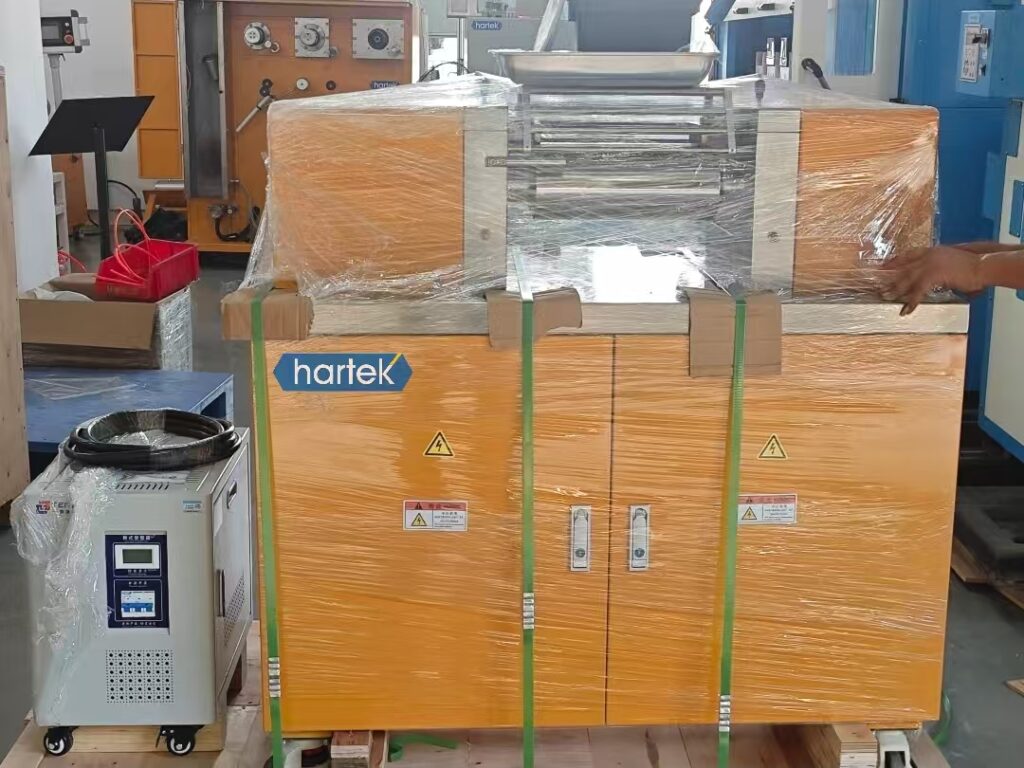

This week, Hartek completed the production and commissioning of a laboratory two-roll open mill, which has been officially shipped to India.

Designed specifically for laboratory environments, this equipment is suitable for processes such as plasticizing, mixing, and hot-pressing of materials like rubber and plastics, and can meet the needs of small-batch, multi-batch sample production during the R&D phase.

Applications of the Laboratory Two-Roll Open Mill:

• Rubber and plastic formulation design
• Mixing and plasticizing of rubber and plastics
• Mixing and vulcanization of rubber
• Preparation of rubber and plastic sheets
• Optimization and control of rubber mixing process parameters

Product Performance of the Laboratory Two-Roll Open Mill:

• Steel rolls are motor-driven, ensuring stable speed control
• Steel roll surfaces are hard chrome plated and mirror-polished
• Automatic stop protection device with protective cover
• Adjustable working range
• Electric heating/oil heating options available based on process requirements
• Manually adjustable roller spacing

Technical parameters:

Model / 型号	HTP-250
Screw Diameter / 螺杆直径	20、25mm
L/D Ratio / 长径比L/D	28:1
Max. Speed / 最高转速	120rpm
Max. Temp. / 最高温度	350℃
Temp. Control Accuracy / 温控精度	±1.0℃
Pressure Measuring Range / 熔体压力测量范围	0~50MPa
Pressure Measuring Accuracy / 熔体压力测量精度	0.2%F.S
Die Width / 压光辊直径	120mm
Calender Rolls Speed / 压光辊速度	0.5~10 m/min
Traction Speed / 牵引速度	0.5~10 m/min
Output / 产量	0.5~5kg/H
Weight / 重量	580kg
Dimension / 外形尺寸	L×W×H 3000×1120×1720mm
